3.1. Setting up a real-world downscaled simulation

This is an example of a dynamically downscaled FastEddy simulation over Fort Collins (CO) driven by WRF simulated mesoscale weather conditions. This tutorial introduces the 3 preprocessing steps required to run mesoscale coupled real cases: GeoSpec, SimGrid, and GenICBCs, all of which are implemented using Python scripts (scripts/python_utilities/coupler/). The required datasets to run this tutorial are provided at this Zenodo record.

3.1.1. GeoSpec

The first preprocessing step is GeoSpec.py. The purpose of this step is to create a NetCDF file of standard reference format from which one or more specific-resolution gridded FastEddy domain(s) can be created in the next step. The following variable dimensions and naming conventions are required in the GeoSpec.py input NetCDF file (see provided example input NetCDF file: ftCollins_inputs_gis.nc).

float x(x) ;
float y(y) ;
float elevation(y, x) ;
double lat(y, x) ;
double lon(y, x) ;
int LandCover(y, x) ;
float cellsize ;

Two required fields from an external GIS source are the terrain topography (elevation, in m above seal level) and the categorical land cover (LandCover). Note that high-resolution fields are desirable as inputs. Terrain can usually be obtained from lidar data at a few meters resolution, while land cover datasets are typically coarser. For U.S. locations we recommend using the National Land Cover Database (NLCD) dataset that comes at a high resolution of 30 m. The input NetCDF file should also include the corresponding latitude and longitude 2d fields (lat and lon) provided as double precision due to the high-resolution typically used in these FastEddy simulations. All fields must be projected consistently and discretized in the projected coordinate frame at the same resolution (cellsize, in m).

Input parameters to GeoSpec.py are specified in the geospec.json file. These include the path and file name of the input GIS data (gis_root and gis_file, respectively), along with other parameters including the output path of the standard format, reference NetCDF output file of this step (FE_dataset_path). In order to convert the land cover class into a roughness length value, a look-up table must be provided (nlcd_name). In this tutorial, a lookup table is provided based on the 16-class NLCD dataset (LandCoverMetadata_NLCD16.csv). Finally, the JSON file entry water_cats needs to list all of the land cover categories that correspond to water bodies, so an appropriate roughness length parameterization can be used by FastEddy. Once all the required input files are ready, GeoSpec.py can be executed:

python ./GeoSpec.py -f geospec.json

After successful completion, a NetCDF file (FortCollinsCO.nc) with the following fields will be created:

float xPos2d(yIndex, xIndex) ;
float yPos2d(yIndex, xIndex) ;
float topoPos(yIndex, xIndex) ;
int LandCover(yIndex, xIndex) ;
float z0m(yIndex, xIndex) ;
float z0t(yIndex, xIndex) ;
float SeaMask(yIndex, xIndex) ;
float dx_inter ;
float dy_inter ;
double lat(yIndex, xIndex) ;
double lon(yIndex, xIndex) ;

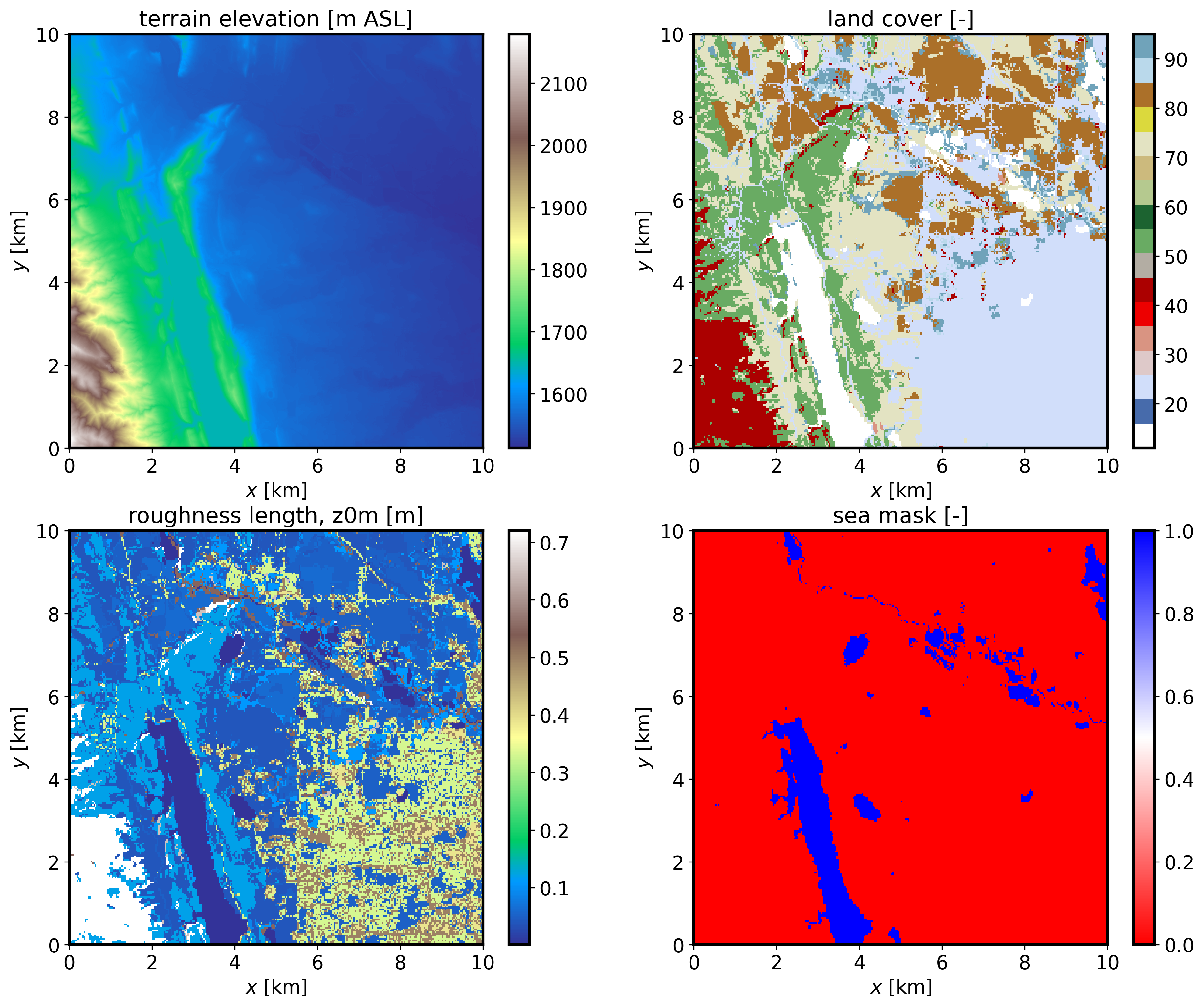

If the JSON file option save_plot_opt is set to 1, then a plot will be produced displaying the terrain elevation, land cover, roughness length, and sea mask (water body) maps.

Alternative text

Note

  • Any user-provided georeference input NetCDF file should be oriented south-to-north and west-to-east. Georeferenced arrays created in a GIS tool may need to be flipped to orient them as south-north within the georeference input NetCDF file required here.

  • The input GIS data should be projected consistently with the WRF mesoscale data be used to provide initial and boundary conditions to FastEddy.

  • All three preprocessing steps make use of functions defined in couplingUtils.py. This file either needs to be present in the same directory as the preprocessing Python scripts or alternatively the location of couplingUtils.py must be included in your PYTHONPATH (e.g. using sys.path.append).

  • Optionally (gis_opt = 1), the user can point to a WRF restart file, inheriting the WRF domain georeference specification as an alternative to providing the standard GIS-derived input file to GeoSpec.py. A WRF output file can also be used, but it needs to include the variable ZNT (roughness length) not present by default in WRF output files.

3.1.2. SimGrid

The second preprocessing step is SimGrid.py. The purpose of this step is to set up a FastEddy grid over a domain located within the area covered by the GIS file generated with GeoSpec.py. The location of the center of the FastEddy domain is specified in the simgrid.json file by the parameters center_lat and center_lon (40.5948 and -105.1380 for this example). The number of points in each direction (Nx, Ny, Nz), grid spacings (d_xi, d_eta, d_zeta), and vertical stretching parameters (verticalDeformFactor, verticalDeformQuadCoeff) required to set up a grid are read in from a FastEddy parameters file (FE_params_file). SimGrid.py performs decimation or interpolation between the GeoSpec.py output reference resolution and the parameter-specified grid spacing of the target FastEddy domain for surface fields, in addition to establishing a terrain following vertical coordinate grid. Once all the required input files are ready, SimGrid.py can be executed:

python ./SimGrid.py -f simgrid.json

After successful completion, a NetCDF file (FortCollinsCO.0) with the following fields will be created:

float xPos(zIndex, yIndex, xIndex) ;
float yPos(zIndex, yIndex, xIndex) ;
float zPos(zIndex, yIndex, xIndex) ;
float topoPos(yIndex, xIndex) ;
float z0m(yIndex, xIndex) ;
float z0t(yIndex, xIndex) ;
float SeaMask(yIndex, xIndex) ;
int LandCover(yIndex, xIndex) ;
double lat(yIndex, xIndex) ;
double lon(yIndex, xIndex) ;
int xIndex(xIndex) ;
int yIndex(yIndex) ;
int zIndex(zIndex) ;

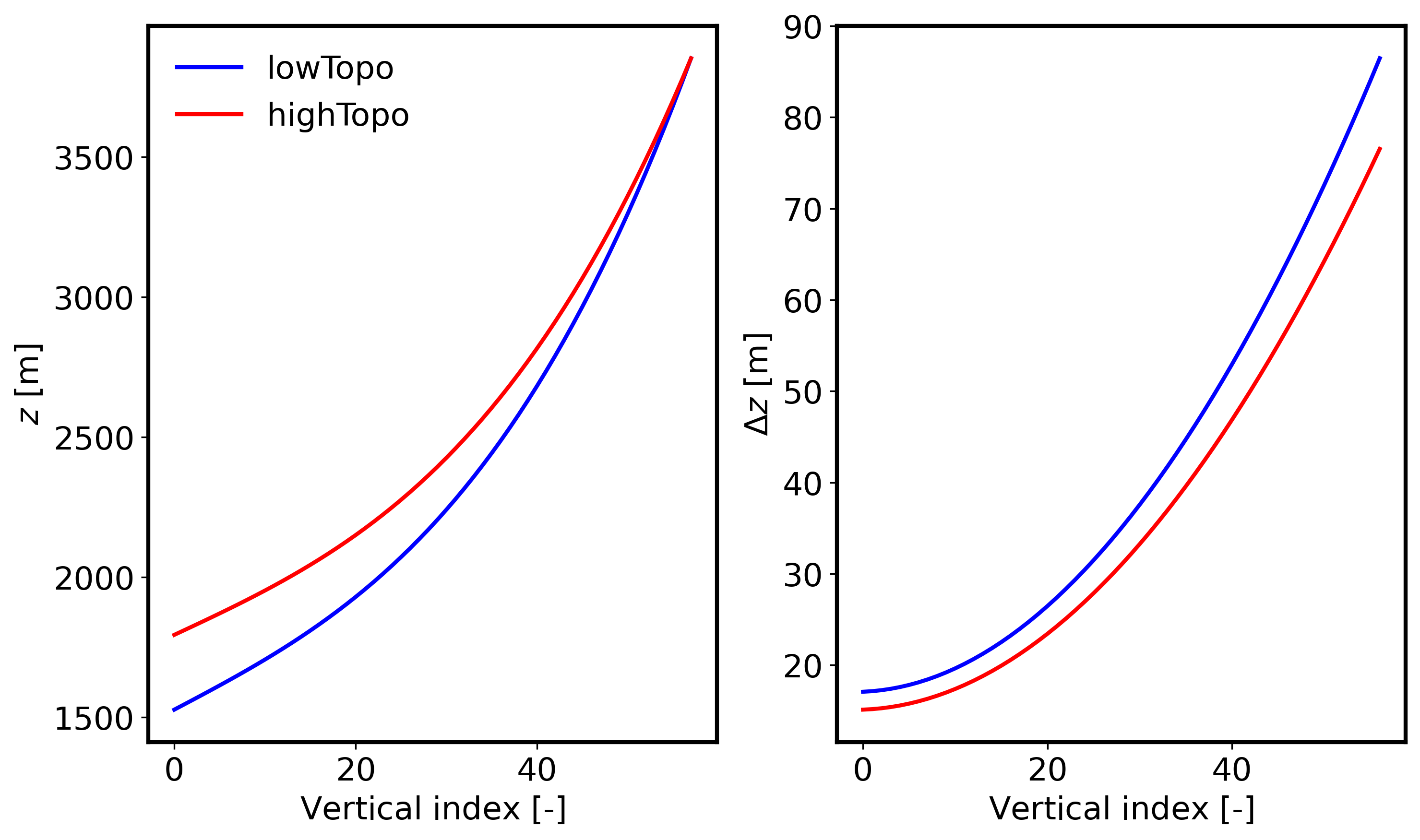

A binary file containing the terrain elevation information will also be generated (FortCollinsCO_Topography_448x450.dat) and should be included as the topoFile entry of the FastEddy input parameters file. If the JSON file option save_plot_opt is set to 1, then a plot will be produced displaying the vertical distribution of height and grid spacing at the lowest and highest terrain elevation points in the domain:

Alternative text

Note

  • Keep in mind that the highest elevation locations will exhibit the largest grid compression, resulting in the smallest surface grid spacings. You may need to adjust the vertical stretching parameters in the FastEddy input file and rerun SimGrid.py until the minimum desired surface grid spacing is achieved. The standard output logging generated during the execution of SimGrid.py can be useful for that purpose.

  • Remember to adjust the FastEddy timestep size parameter dt commensurately with the minimum grid spacing over the entire domain to ensure numerical stability of the simulation.

3.1.3. GenICBCs

The third preprocessing step is GenICBCs.py. The purpose of this step is to create initial and boundary conditions (ICBCs) from the mesoscale WRF simulation results specific to the domain created by SimGrid.py. The input parameters are specified in the corresponding genicbcs.json file. This step involves three-dimensional interpolation of prognostic equation variables (winds, density, potential temperature and water vapor) and two-dimensional interpolation of surface skin forcings (temperature and water vapor). In order for WRF to provide the required fields to drive a nested FastEddy simulation, a number of additional variables not present in WRF’s default output are required. To save the necessary variables at a sufficiently high temporal fidelity in an efficient manner, it is recommended to create WRF auxiliary files. For that purpose, when running WRF, include the following lines in WRF’s namelist.input.

&time_control
iofields_filename         = "vars_io.txt",
ignore_iofields_warning   = .true.,
auxhist14_outname         = "wrf_fasteddy_d<domain>_<date>",
auxhist14_interval_m      = 5,
frames_per_auxhist14      = 1,
io_form_auxhist14         = 2

And include the file vars_io.txt containing the one line below in WRF’s run directory.

+:h:14:PH,PHB,U,V,W,T,QVAPOR,QCLOUD,ALT,TSK,Q2,HGT,PSFC,XLAT,XLONG

With these additions, WRF will generate a set of timestamped wrf_fasteddy_ files that will be utilized as basis for the interpolation to the FastEddy grid. The rest of input parameters are meant to provide the starting date and time of the sequence of ICBCs to be created. Similar to the other preprocessing scripts, GenICBCs.py is executed as:

python ./GenICBCs.py -f genicbcs.json

Successful completion will create an initial condition file (FE_interp_170000UTC.0) and a set of boundary condition files (FE_Bndys.*) where the index indicates the number of second increments from the initial time (frequency in seconds is specified by the parameter secInc in genicbcs.json).

3.1.3.1. Nested LES-to-LES with FastEddy input data

GenICBCs.py has been extended to allow nesting within FastEddy LES model data. In order to enable that option, parent_model variable in genicbcs.json needs to be set to 1. In the case of using an idealized FastEddy simulation as the source input data (i.e., constant latitude and longitude throughout the domain), the variable ideal_opt needs to be activated, in order for the horizontal coordinates to be used as reference to locate the domain instead of geographic coordinates used for real cases.

Note

  • The parent_model option needs to be set to 0 for WRF nesting and to 1 for nesting within FastEddy model data.

  • The nest_tke_opt option allows for using TKE from the parent model as initial and boundary conditions. If not activated, a uniform value of 1.0e-10 m2/s2 is used (initial versions of the coupling capabilities preceding FastEddy v5.0).

3.1.4. Addendum: Using MPAS model data as input

If one wishes to use MPAS model files as inputs to FastEddy, a series of steps may be performed to prepare the data for use before the GenICBCs.py preprocessing step. The required data from MPAS forecasts are the history.YYYY-MM-DD_HH.mm.ss.nc, diag.YYYY-MM-DD_HH.mm.ss.nc, and init.nc files. These files must first be converted from the MPAS unstructured grid to match the WRF lat-lon grid. Various tools are available to perform the interpolation, including MPASSIT. An example batch submission script, run_mpassit.sh, and variable lists, varlists_mpassit_fasteddy, are available in scripts/batch_jobs/, which can be configured with paths to MPAS outputs, a build of MPASSIT, and a set of run parameters to determine the date and time corresponding to input data. This batch submission script is run with

qsub run_mpassit.sh

The resulting output will be named proc.YYYY-MM-DD_HH.mm.ss.nc. The proc files required to run this addendum are provided at this MPAS Zenodo record.

A further conversion step must then be performed in order to ensure that the variables output by MPAS match the requirements of GenICBCs.py and FastEddy. In this step, density and geopotential heights not provided in the standard MPAS output are derived and appended to the WRF-like output files created by MPASSIT. A conversion script is available in scripts/python_utilities/coupler/. You may configure mpassit_to_fasteddy.py with the input file mpassit_to_fasteddy.json, similar to the configuration of genicbcs.json by setting file name prefixes and date and time information for the ICBC data. The conversion script is run with

python ./mpassit_to_fasteddy.py -f mpassit_to_fasteddy.json

Once completed, the resulting output files should appear with a naming scheme that matches the WRF filename date formatting and can then be used as input to GenICBCs.py to generate FastEddy input data.
